A belt that suddenly starts hopping, a finish marked with repeating lines, or a grinder that buzzes through the workpiece can ruin an otherwise clean pass. Learning how to prevent grinder chatter starts with separating vibration you can feel in the machine from chatter created where the belt meets the steel. They often show up together, but they do not always have the same cause.
On a 2x72, chatter is usually a system problem. Belt condition, wheel condition, machine rigidity, belt speed, pressure, and work support all affect one another. Fixing the right weak point makes grinding smoother, improves finish consistency, and keeps you from chasing marks with finer belts.
Start by Identifying the Type of Chatter
Before changing parts or adjusting tracking, look at the pattern on the workpiece. A repeating series of evenly spaced marks usually points to a belt seam, damaged belt, wheel runout, or contamination on a contact wheel. Random gouges or a rhythmic grab-and-release feel are more likely tied to technique, loose work support, excessive pressure, or a belt that is loading up.
Machine vibration without visible surface marks is another category. You may feel it through the frame, hear it when the grinder is unloaded, or see the tracking wheel shake. That can come from an unbalanced drive wheel, a motor issue, loose hardware, or a frame that is not firmly mounted.
Do not troubleshoot all of these at once. Start the grinder with no work against the belt. If it runs smoothly unloaded but chatters under pressure, focus on the belt, grinding setup, and how the part is supported. If it shakes while free-running, inspect the rotating components and mounting first.
Build Rigidity Into the Grinder Setup
A belt grinder does real work under load. Any movement between the machine, the stand, the tooling arm, and the attachment becomes an opportunity for vibration to build. A light bench, loose pedestal, or flexing tool arm can turn a good belt into a chatter problem.
Mount the grinder to a substantial stand or bench that does not rock when you lean into it. Check fasteners at the base, motor mount, tracking assembly, platen attachment, and tooling arm receiver. A single loose bolt can produce a surprising amount of vibration once the belt is up to speed.
Tooling arms deserve the same attention. If an arm has noticeable play in the receiver, the platen or contact wheel can shift under pressure. That movement changes the belt’s contact point while you grind, which leaves a repeating pattern or causes the workpiece to pulse. Keep receiver clamping surfaces clean and tighten the arm securely without relying on a soft, damaged clamp bolt.
This is where a rigid grinder platform pays for itself. Diktator Grinders systems are built around heavy steel construction and modular tooling arms because a grinder should hold alignment while you work, not fight you when pressure comes on. If you are upgrading an older build, improving the stand and tooling-arm fit often produces a bigger gain than changing abrasives alone.
Inspect the Belt and Wheels Before Adjusting Technique
A fresh belt is not automatically a good belt. Inspect both sides before installation. Look for a raised seam, damaged splice, curled edge, uneven backing, embedded debris, or a spot where the abrasive has broken down. Run the belt at low speed and watch its edge. A belt that wanders, pulses, or visibly rises at the seam can create chatter even on a well-built grinder.
Belt tension matters, but more tension is not always the cure. Too little tension allows the belt to flutter and lose consistent contact. Excessive tension can overload bearings, make the belt less forgiving, and amplify problems elsewhere in the system. Set enough tension to keep the belt stable under normal grinding pressure, then confirm that it tracks steadily across the wheel faces.
Next, inspect the drive wheel, tracking wheel, contact wheels, and platen parts. A nick, hardened glue spot, packed grinding swarf, or uneven wheel surface transfers directly to the belt. Clean wheels regularly, especially after grinding aluminum, gummy stainless, or adhesive-backed materials. Aluminum loading can create a repeating high spot that looks like a wheel problem until you remove it.
Check wheel bearings by rotating each wheel with the grinder off. They should turn smoothly, without roughness, wobble, or side play. If a contact wheel has visible runout, you will struggle to get a clean finish no matter how carefully you feed the work. Precision contact wheels and properly maintained drive and tracking wheels are not cosmetic upgrades. They determine whether the belt runs true under load.
Match Belt Speed to the Job
High belt speed is excellent for stock removal, but it can make a marginal setup chatter more aggressively. The belt hits the work harder, heat rises faster, and any imbalance becomes easier to feel. If chatter starts while hogging material, reduce speed with a VFD and see whether the pattern changes.
That test tells you something useful. If slowing the belt nearly eliminates the issue, you may be applying too much pressure, using too aggressive a grit for the contact area, or running a flexible part without enough support. If the chatter remains at every speed, inspect the belt and machine more closely.
Variable speed gives you room to tune the process instead of forcing every job through one RPM range. Use lower to moderate speed for finish work, thin stock, tight-radius work, and materials that load belts quickly. Increase speed when the setup is rigid, the belt is cutting cleanly, and you need controlled stock removal. Motor and VFD selection should support that range without sacrificing torque at useful lower speeds.
Drive wheel diameter also changes belt surface speed. A larger drive wheel can increase speed substantially at the same motor RPM, which may be productive for heavy removal but less forgiving when troubleshooting vibration. Confirm your actual belt speed with a belt speed calculator before assuming the issue is technique.
Support the Workpiece and Control Pressure
Even a perfectly tuned grinder can chatter when the workpiece is allowed to flex. Thin knife blanks, long fabricated parts, and narrow pieces are especially prone to bouncing against the belt. Support the work as close to the grinding point as possible, and keep both hands in control of the part.
For flat grinding, a solid platen and properly adjusted tool rest give the workpiece a stable reference. If you are grinding bevels, use a consistent body position and feed the blade with steady, moderate pressure. Pushing harder when the belt stops cutting usually creates heat, flex, and chatter. Change the belt instead.
A worn belt often causes trouble before it looks completely spent. Its cutting action becomes inconsistent, forcing you to lean harder into the work. That extra pressure can make a thin blade sing against the platen or make a small part chatter across a contact wheel. Fresh abrasives are cheaper than regrinding damaged surfaces.
When using small wheels, let the belt cut and avoid forcing the work into the radius. Small-wheel work concentrates pressure in a narrow zone, so chatter can show up quickly if the part is unsupported or the belt is loaded. Use the wheel size that matches the feature, maintain a firm grip, and lower speed when the geometry demands control over removal rate.
Check Platen Alignment and Contact Geometry
A platen that sits too far forward, too far back, or out of square changes how the belt contacts the work. The belt may ride inconsistently over the platen face, especially when pressure shifts from one side of the workpiece to the other. Verify that the platen is square to the belt path and that the belt tracks where it should across the platen.
Platen liners matter as well. A worn, grooved, or contaminated liner can produce tracks that resemble chatter. Replace damaged liners and keep the platen face clean. For certain finishing jobs, a graphite-backed platen can improve belt glide and reduce heat, but it will not correct a loose platen assembly or a damaged belt.

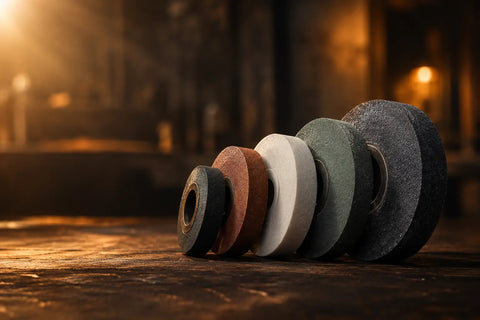

Contact-wheel geometry has its own trade-off. A harder wheel gives a flatter, more aggressive contact and can expose setup problems sooner. A softer wheel is more forgiving and better for blending, but it can allow thin work to deflect. Choose the wheel for the work, then adjust speed and pressure around that choice.
A Practical Chatter Test Sequence
When chatter appears, resist the urge to change every variable. Run this sequence: first, free-run the grinder and check for vibration. Next, install a known-good belt and test at moderate speed. Then clean and inspect the wheels, platen, and work support. Finally, make a light pass with reduced pressure and compare the finish.
If the result improves at each step, you have found the direction of the fix. If it does not, look for loose mounts, wheel runout, worn bearings, or a tooling arm that shifts under load. A grinder should feel planted and predictable. When it does, clean bevels, smooth flats, and repeatable finishing work become much easier to produce.
The best shop habit is to treat new vibration as a signal, not something to grind through. Stop, isolate one variable, and correct the source before a small issue turns into ruined work or unnecessary wear on your grinder.
