XS 2x72 Tilting Belt Grinder Chassis Kit
Steel 2x72 tilting chassis for modular grinding builds.
The Diktator XS 2x72 Tilting Belt Grinder is a professional-grade chassis engineered for fabricators who require a compact yet overbuilt machine. Made in the USA from CNC laser-cut steel, this frame-only kit features an aluminum tooling arm and D-plate to provide superior rigidity and tracking control. Its versatile design allows for a full 90-degree tilt, enabling seamless transitions between horizontal and vertical grinding operations.
- Heavy-duty CNC laser-cut steel construction for maximum frame rigidity
- 90-degree tilting mechanism for horizontal and vertical grinding versatility
- Lightweight solid aluminum tooling arm and 1/2 in. thick D-plate
- Compatible with standard 56C face motors and a wide range of modular attachments
- Fast and straightforward assembly using basic shop tools
Designed for durability and precision, this 2x72 belt grinder chassis offers a space-saving footprint without compromising on power or performance. The modular setup accepts various motor configurations and workholding accessories, making it an ideal choice for knife making, tool restoration, and industrial fabrication. This American-made kit provides the stable foundation necessary for achieving high-tolerance finishes on steel, composites, and other hard materials.
- CNC laser-cut steel XS frame
- 2" x 9" hot-rolled steel platen
- Solid 1.5" aluminum tooling arm
- 1/2" aluminum D-plate
- Aluminum idler wheels
- Aluminum tracking wheel with integrated tracking mechanism
- Gas tensioning strut
- Hardware kit
- Assembly instructions + video guide link
(Motor not included unless you've included it in the kit.)
Required tools:
(2) 5/32" Allen wrenches
1/4" Allen wrench
7/16" wrench
1/2" wrench
3/4" wrench
56C Face Motors Only
Returns: 30 days money back, buyer pays return shipping.
Shipping: Fast delivery time: 1-3 Business Days. All orders over $300 require signature for delivery.
Warehouse location: Beaverton, Oregon
Ships to: All US States

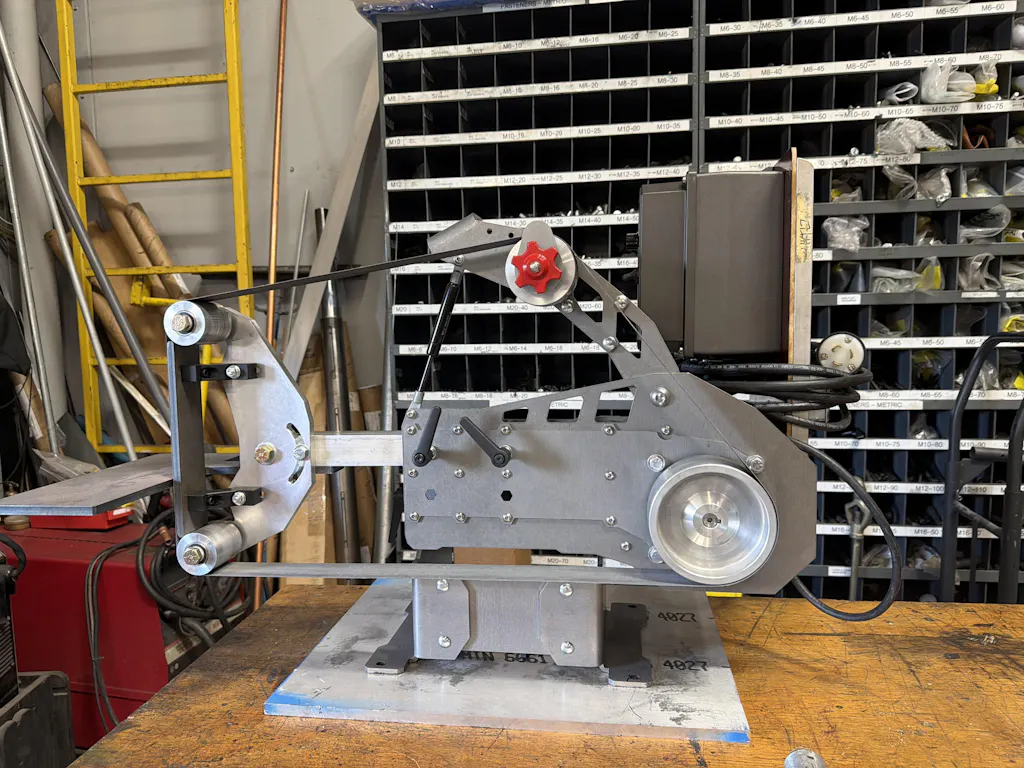

Works as it should…..great machine…..went thru (3) different drives on my end till I found the one I like (KBAC 27D)…..works great……I need to find some seamless belts…..and make a table for it……all in all a very good machine……Glenn
Hi Glenn, Thank you for leaving a review for our Diktator XS 2x72 Tilting Belt Grinder. We are glad to hear that the machine is working well for you and that you were able to find the perfect motor for your needs. Happy grinding!
I still have yet to put it together we are cattle ranchers and spring is busy. But I can’t wait till I get a chance it looks ranch worthy ( bullet proof ) . We only buy good American built to support our efforts and I’m thinking you are spot on. Continued at a later date!
Well built and fairly easy to assemble. Does exactly what I need it to.
Thank you for taking the time to leave a review for the Diktator XS 2x72 Tilting Belt Grinder. We're happy to hear that you found the product to be well built and easy to assemble. It is our goal to provide our customers with high-quality products. Thank you for choosing Diktator and we hope to continue meeting your needs in the future. Happy grinding!
Solid built,easily followed video directions.( remember the video is reversed). Run’s smoothly and no vibration! Was packed very well for shipping!
Thanks so much for your feedback, we're excited you find our XS is built to your expectations and running well. Keep us in mind as you use it, we'd love to see some photos of it in use!
The grinder is awesome. It was easy to set up and has all the features I need. The quality is fantastic as well.
Thank you for your kind words! We are glad to hear that you are happy with your Diktator XS 2x72 Tilting Belt Grinder. Our team takes pride in providing high-quality products that are also easy to set up. We appreciate your support and hope you continue to enjoy using our grinder.
